Drivetrain
| Transmission | pDrive primary CVT with engine braking and Electronic Drive Belt Protection L / H / N / R / P |
| Transmission Type | Belt |
| Clutch | Wet, Multi-Plate, Assist |
| Gearbox | 6-speed |
| Chain Type | #420 Chain; 14T/ 37T |
| Gear Ratios 2nd | 6.933:1 |
| Gear Ratios 1st | 10.169:1 |
| Gear Ratios 3rd | 5.151:1 |
| Gear Ratios 4th | 4.105:1 |
| Gear Ratios 5th | 3.508:1 |
| Gear Ratios 6th | 3.017:1 |
Suspension
| Front Suspension | Double A-arm |
| Rear Suspension | TTA with external sway bar |
| Front Travel | 5.5 in (140 mm) |
| Rear Travel | 5.9 in (150 mm) |
| Front Shocks | Twin tube gas-charged shocks |
| Rear Shocks | Twin tube gas-charged shocks |
Brakes
| Front Braking System | Dual 220 mm disc brakes with hydraulic twin-piston calipers |
| Rear Braking System | Dual 220 mm disc brakes with hydraulic twin-piston calipers |
| Parking Brake | Single Handle Bar Mounted, Mechanical Locking |
Tires
| Wheels | 14 in. cast aluminum | Steering: Adjustable tilt steering |
| Front Tire | XPS Trail Force 27 x 9 / 11 x 14 in |
| Rear Tire | XPS Trail Force 27 x 9 / 11 x 14 in |
| Front Wheel | 10-Spoke Machined Cast 19 in x 3.5 in |
| Rear Wheel | 10-Spoke Machined Cast 16 in x 5 in |
Dimensions
| Wheelbase | 115.5 in (2,940 mm) |
| Ground Clearance | 11 in (280 mm) |
| Bed Box Dimensions | 43.4 x 56 x 13.4 in (110.2 x 142.2 x 34 cm) |
| Overall Vehicle Size | 41.9" w x 101.5" l x 48.7" h |
| Seat Height | 30.5 in (775 mm) |
| Rake / Trail | 25° / 3.2" |
| Lean Angle (Left) | 31 |
| Lean Angle (Right) | 31 |
Capacities
| Cargo System | Lock & Ride Compatible 5 Gal (18.9L) Front Dry Storage |
| Payload Capacity | 771 lbs (1,700 kg) |
| Fuel Capacity | 10.6 gal (40 L) |
| Box Capacity | 1,000 lb (454 kg) |
| Cargo Capacity | 454 lbs (1,000 kg) |
| Storage Capacity | 11.1 gal (42.1 L) |
| Hitch Type | 2 in. hitch receiver |
| Hitch Capacity | 1,350 lb (612 kg) |
| Rack Capacity (Front) | 90 lb (40.8 kg) |
| Rack Capacity (Rear) | 25 lb (11.3 kg) |
| Seating Capacity | 0 |
| Bed Capacity | 299 pounds |
| Towing Capacity | 1,134 lbs (2,500 kg) |
| Rack Capacity | Front: 120 lb (54.4 kg) / Rear: 240 lb (109 kg) |
Weights
| Dry Weight | 1,736 lbs (787 kg) |
Electronics
| Gauges | 4.5 in. wide digital display |
| Magneto | 650 W |
| Audio System | Includes 4 Standard 50 watt speakers. 2 in the fairing, 2 in the trunk. 200 watts total. |
Lights & Safety
| Features | Standard Equipment: Remote Locking Hard Saddlebags, Power Adjustable Windshield, 37+ Gallons of Storage, Keyless Ignition, Adjustable Fairing Vents, USB Charger, Tire Pressure Monitoring System (TPMS) |
| Lighting | Front lighting output 140 W, LED tail lights |
| Instrumentation | DC outlet (10 A) |
| Warranty | Factory: 1 year BRP limited warranty | Extended: B.E.S.T. term available up to 30 months |
| Steering | Power: Dynamic Power Steering (DPS) |
| Handlebars | Neken, aluminium 28/22 mm |
| Cage Type | Profiled cage, ROPS approved |

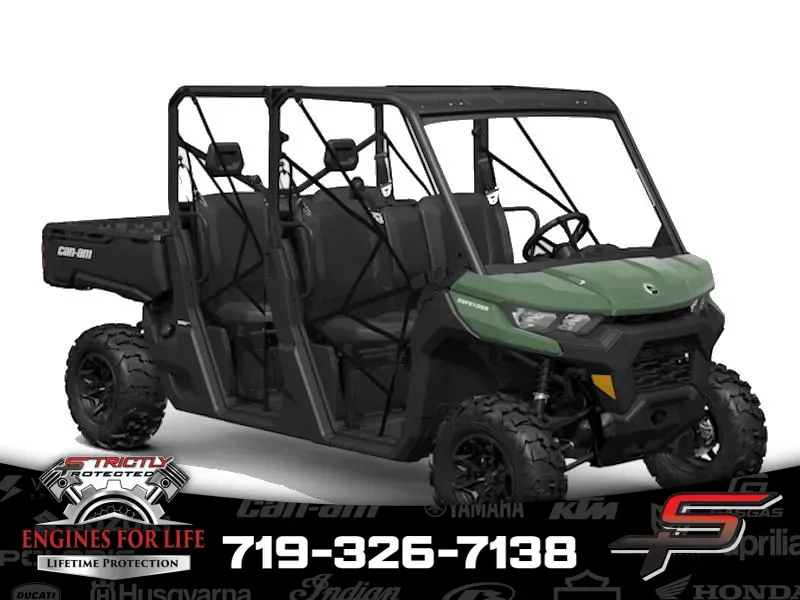

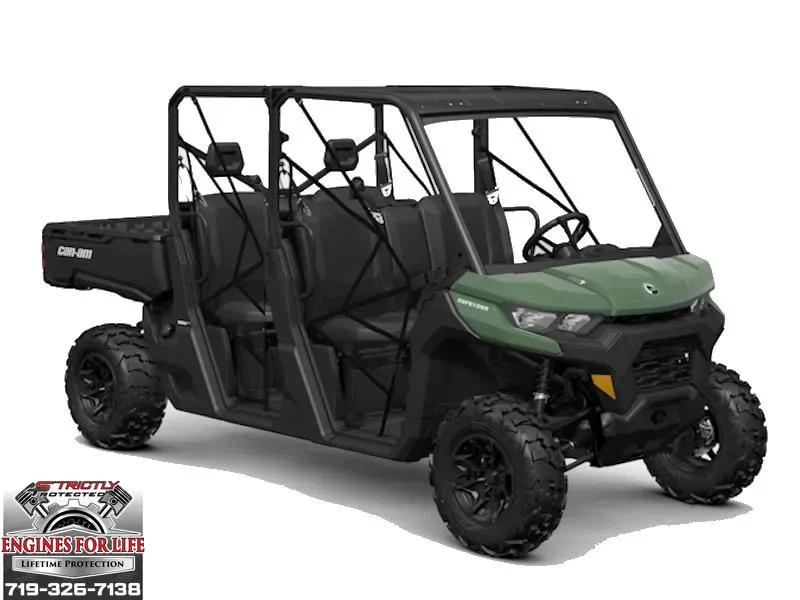

Frequently asked questions about 2025 Can-Am Defender MAX DPS HD7 Compass Green
What type of fuel does a 2025 Can-Am Defender MAX DPS HD7 Compass Green use?
A 2025 Can-Am Defender MAX DPS HD7 Compass Green uses Gasoline.
What is the 2025 Can-Am Defender MAX DPS HD7 Compass Green fuel capacity?
A 2025 Can-Am Defender MAX DPS HD7 Compass Green has the fuel capacity of 11 gallons.
How much horsepower does a 2025 Can-Am Defender MAX DPS HD7 Compass Green have?
A 2025 Can-Am Defender MAX DPS HD7 Compass Green has 52 horsepower.
How is the 2025 Can-Am Defender MAX DPS HD7 Compass Green cooled?
The 2025 Can-Am Defender MAX DPS HD7 Compass Green is cooled by Liquid-cooled.
What type of fuel system does the 2025 Can-Am Defender MAX DPS HD7 Compass Green have?
The 2025 Can-Am Defender MAX DPS HD7 Compass Green is equipped with a Intelligent Throttle Control (iTC) with Electronic Fuel Injection (EFI) fuel system.
What type of front brakes does the 2025 Can-Am Defender MAX DPS HD7 Compass Green have?
The 2025 Can-Am Defender MAX DPS HD7 Compass Green is equipped with Dual 220 mm disc brakes with hydraulic twin-piston calipers front brakes.
What type of rear brakes does the 2025 Can-Am Defender MAX DPS HD7 Compass Green have?
The 2025 Can-Am Defender MAX DPS HD7 Compass Green is equipped with Dual 220 mm disc brakes with hydraulic twin-piston calipers rear brakes.
