Transmission | Gen 2 Automatic PVT H/L/N/R/P; Shaft |
Chain Type | 520 X-Ring |
Clutch | Wet, DDS multi-disc clutch, Brembo hydraulics |
Gear Ratios 1st | 2.769:1 |
Gear Ratios 2nd | 1.882:1 |
Gear Ratios 3rd | 1.500:1 |
Gear Ratios 4th | 1.273:1 |
Gear Ratios 5th | 1.125:1 |
Gear Ratios 6th | 0.966:1 |
Gearbox | 6-speed |
Transmission Type | Five-speed manual with reverse |
Front Suspension | Dual A-Arm |
Rear Suspension | Dual A-Arm IRS |
Front Travel | 7.9 in (200 mm) |
Rear Travel | 7.9 in (200 mm) |
Front Shocks | Twin tube |
Rear Shocks | Twin tube |
Front Braking System | 4-Wheel Hydraulic Disc with Dual-Bore Front Calipers |
Rear Braking System | 4-Wheel Hydraulic Disc with Dual-Bore Front Calipers |
Parking Brake | Park In-Transmission |
Front Wheel | Cast 8-Spoke 16" x 3.5" |
Rear Wheel | Cast 8-Spoke 16" x 3.5" |
Front Tire | 29 x 9-14; PRO ARMOR X-TERRAIN | Tire Ply Rating: 8-Ply Rated |
Rear Tire | 29 x 11-14; PRO ARMOR X-TERRAIN | Tire Ply Rating: 8-Ply Rated |
Wheels | Aluminum |
Overall Vehicle Size | 47.4" w x 46.2" h |
Rake / Trail | 24.7° / 4" |
Wheelbase | 113 in (2,870 mm) |
Seat Height | 33.7 in |
Ground Clearance | 14 in (355 mm) |
Lean Angle (Left) | 31 |
Lean Angle (Right) | 31 |
Bed Box Dimensions | 36.75 x 54.25 x 12.5 in (93 x 138 x 32 cm) |
Seating Capacity | 0 |
Fuel Capacity | 11.5 gal (43.5 L) |
Hitch Type | Standard 2 in (5 cm) Receiver |
Cargo Capacity | 199 lbs (439 kg) |
Payload Capacity | 558 lbs (1,230 kg) |
Storage Capacity | 9 gal (34 L) |
Towing Capacity | 1,134 lbs (2,500 kg) |
Rack Capacity (Front) | 120 lb (54.4 kg) |
Rack Capacity (Rear) | 240 lb (109 kg) |
Hitch Capacity | 2,500 lb (1,134 kg) |
Cargo System | Lock & Ride |
Box Capacity | 1,000 lbs (453.6 kg) |
Bed Capacity | 1000 pounds (49 states) |
Rack Capacity | Front: 120 lb (54.4 kg) / Rear: 240 lb (109 kg) |
Dry Weight | 2,344 lbs (1,063 kg) |
Gauges | Black Smoke |
Magneto | 850 W |
Audio System | Includes 2 Standard 50 watt fairing speakers, 100 watts total. |
Features | Water Fording Height: Equal to the Floorboards | Other Standard: Premium Pro-Shield Cab; Doors with Crank Windows; Fixed Glass Windshield with Wiper; Rear Glass Panel; Factory-Installed Heat, AC, Defrost; Rearview Mirror; Premium Steering Wheel and Interior Accents; NorthStar Tailgate Badge; Front Bumper with Integrated Winch, Plow & LED Mounts; Premium Cut & Sew Seats with Contoured Seatbacks and Embroidered Polaris Branding; Polaris HD 4500 lb Synthetic Rope Winch with Autostop and Wireless Remote; Polaris PulseElectrical System (6-Position) Underhood Busbar and 6-Position Roof Busbar; 12V Accessory Outlet; Battery Trickle-Charging Outlet; USB Outlet |
Lighting | Dual LED Headlights 1250lm Low Beam, 2300lm High Beam, Dual LED Tail Lights |
Warranty | 12 / Limited |
Steering | Tilt: Standard |
Handlebars | Aluminum |
Cage Type | Profiled cage, ROPS approved |
Instrumentation | Dual-sweep Analog Dials w/ 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, 2 DC Outlets, USB Charge Port, Automatic Speed Limiting in 2 mph increments starting at 16 mph to max speed. |

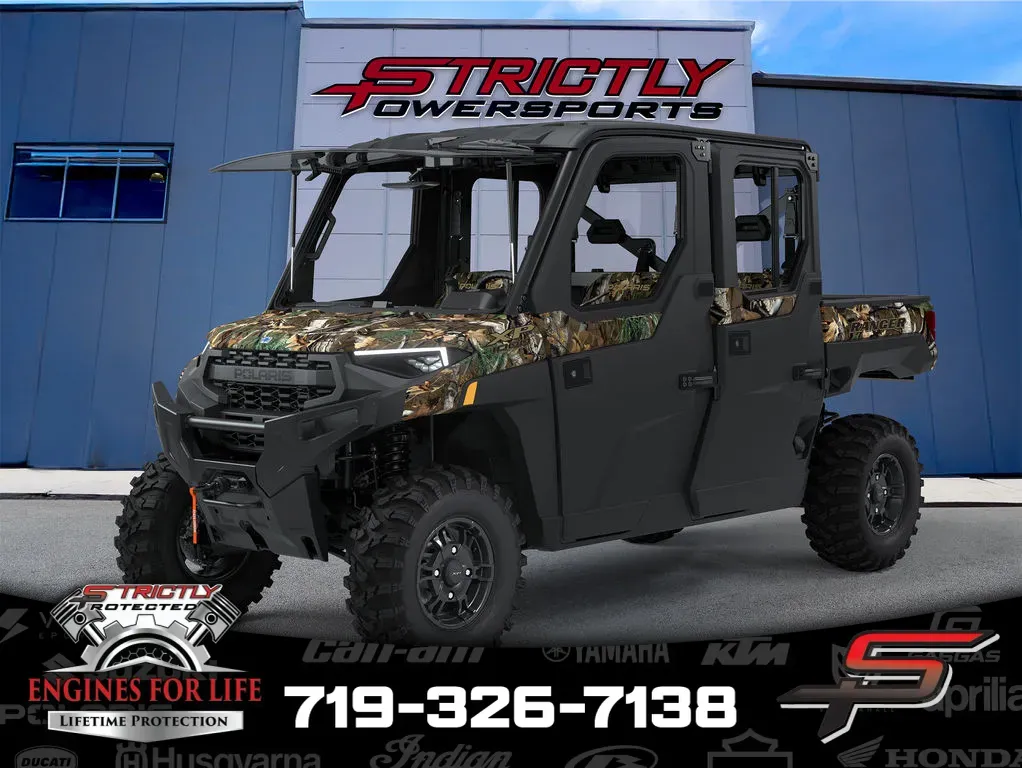

Information deemed reliable, but not guaranteed. Interested parties should confirm all data before relying on it to make a purchase decision. All prices and specifications are subject to change without notice. Every price we list INCLUDES destination and assembly (sometimes referred to as freight and set-up), reconditioning, documentation, and dealer handling. The ONLY thing additional you will pay for is accessories, taxes and/or government fees. There are no surprise fees when you pay for your motorcycle, ATV or Side by Side. Please note picture shown may not depict actual unit and may show added accessories that do not come standard.
