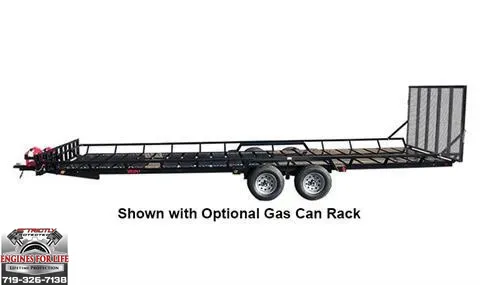

2025 Echo Trailers EEW-17-14T

The 2024

Echo Elite EEW-17-14T

is a specialized overwide sport utility trailer designed specifically for transporting off-road vehicles. This 17-foot model is optimized to maximize space, allowing for configurations such as one 4-seat side-by-side (UTV) plus one ATV, or up to four ATVs.

Key Specifications

1. Dimensions: The deck measures 205 inches (approx. 17 ft) in length and 73 inches in width, with an overall trailer width of 90 inches.
2. Weight & Capacity: It has a Gross Vehicle Weight Rating (GVWR) of 3,500 lbs, an empty weight of 992 lbs, and a carrying capacity of 2,508 lbs.
3. Construction: Features an all-steel tube frame (2x3 in.) with a non-slip metal deck and a black powder-coated finish for durability.
4. Running Gear: Equipped with a single 3,500 lb straight axle, leaf spring suspension, and 13-inch 6-bias ply tires.
5. Loading: Includes 15" x 80" self-storing ramps that facilitate side-loading for ATVs.

Standard Features

1. Tongue: Heavy-duty A-frame tongue with a 1,200 lb swivel jack and a 2-inch coupler.
2. Lighting: Recessed D.O.T. sealed tail lights with a four-flat electrical connection.
3. Tie-Downs: Multiple integrated tie-down loops for securing various vehicle configurations.
4. Maintenance: Features greasable spindles for easier axle upkeep
